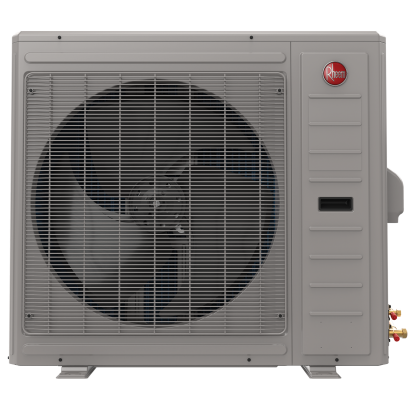

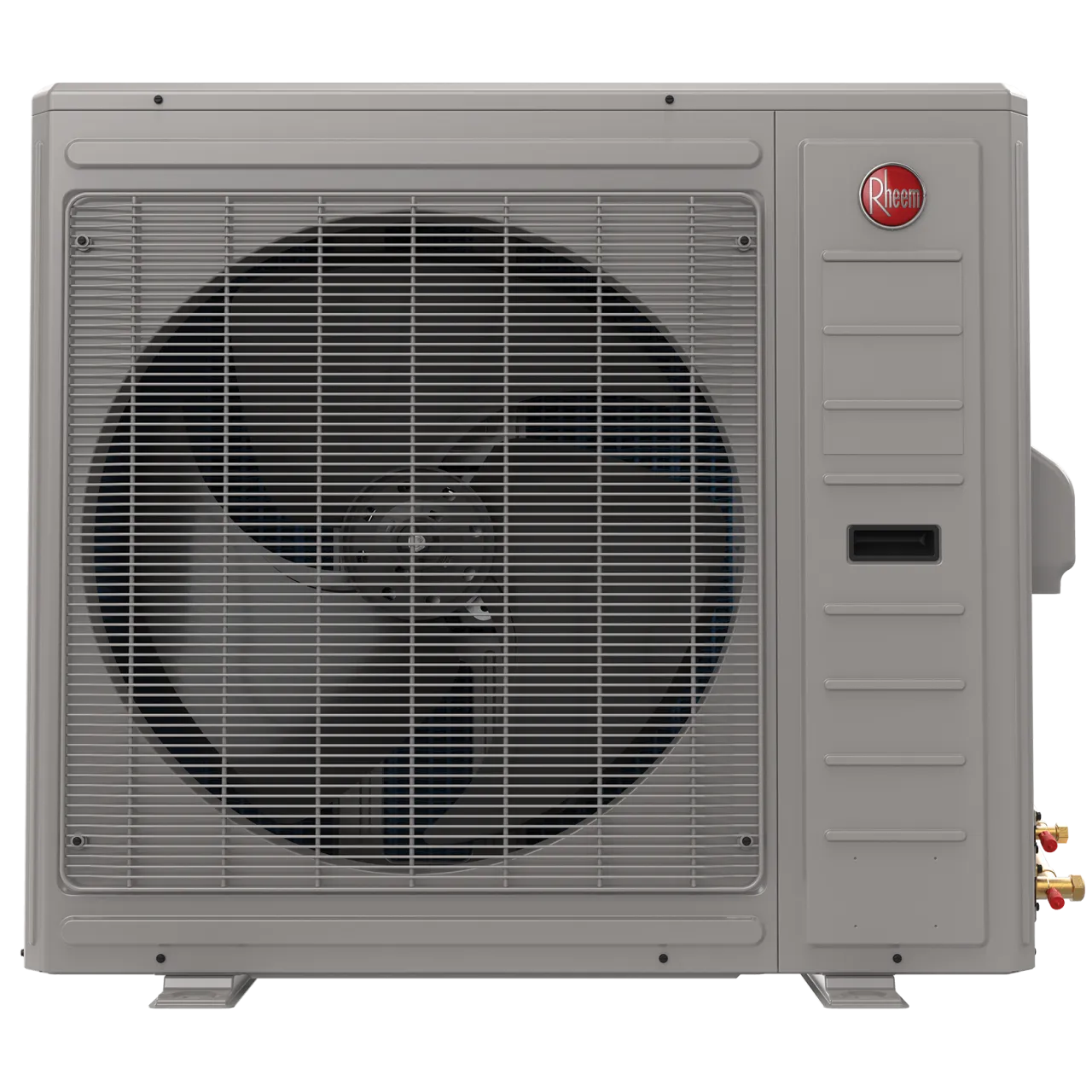

RD16AY Endeavor Line Classic Plus Series Side-Discharge Heat Pumps

Model # RD16AY60AJVCA
RD16AY Endeavor® Line Classic® Plus Series Side-Discharge Heat Pumps
RD16AY Endeavor® Line Classic® Plus Series Side-Discharge Heat Pumps
RD16AY Endeavor Line Classic Plus Series Side-Discharge Heat Pumps
Model # RD16AY60AJVCA
Limited warranty may be conditional and require registration. Please refer to product warranty certificate for full details.
Tonnage 5
SEER Up to 0
Warranty 10 Yrs
  • Cooling Efficiencies up to: 17 SEER2 / 10.5 EER2
  • Heating Efficiencies up to: 8.5 HSPF2
  • Nominal Sizes: 2 to 5 Tons [7.0 to 17.6 kW]
  • Cooling & Heating Capacities: 22.8 to 55.5 kBTU [6.7 to 16.3 kW}
  • Refrigerant Type: R-454B

Overview

Peace-Of-Mind Performance: Relax, you're covered by one of the best warranties in the industry - 10 Year Conditional Parts when installed as a heat pump only or as part of a system.

Energy Savings: Just like a vehicle's MPG rating, the higher the SEER2, EER2 and HSPF2 rating (Seasonal Energy Efficiency Ratio / Energy Efficiency Ratio / Heating Seasonal Performance Factor), the higher the efficiency of your heat pump - resulting in more energy savings.  Keep in mind, other factors such as system matching, sizing, ductwork and installation also impact the overall efficiency.  By working with a properly trained contractor, you can be confident that you are choosing the best heating and cooling system for your home's comfort - and your finances.

Maximum Comfort: Inverter driven, variable spped, twin rotary compressor technology features fully variable cooling and heating operation between 45% and 100% of capacity to continously meet your ever-changing needs.  You'll enjoy exact temperature and advanced humidity control that combine to exceed your optimal comfort expectations.

Reduced Emissions: Households generate 72% of greenhouse gas emissions, so switching to a heat pump can make a big difference for the environment - today.

Less Environmental Impact: The 7mm condenser coil reduces refrigerant requirements up to 15%.  This lowers the amount of greenhouse gases emitted while contributing ot Rheem's sustainability goal of a 50% reduction in our greenhouse gas footprint.  A win for all of us.

Durable Curb Appeal: Steel panels provide excellent support and protection to internal components, while the overall modeern cabinet aesthetics, including the powder coat paint system and rust resistant screws, allow your unit to put its best face forward for years to come.

Quiet Operation: Efficient home comfort shouldn't be noisy.  That's why our heat pumps are designed with acoustics in mind.  Sound-dampening features such as refrigerant tubing design, fan blade approach and innovative compressor and drive technologies ensure that as efficiency goes up, sound levels stay low - as low as 50 dBA.

Product Info

Specifications
Dimensions
Product Depth (in.) 42"
Product Height (in.) 46"
Product Width (in.) 22"
Details
Fuel Type Electric
Tonnage 5
Primary Warranty 10 Yrs
Certifications/Qualifications
Warranties
Conditional Parts: Ten (10) Years (Registration Required)
