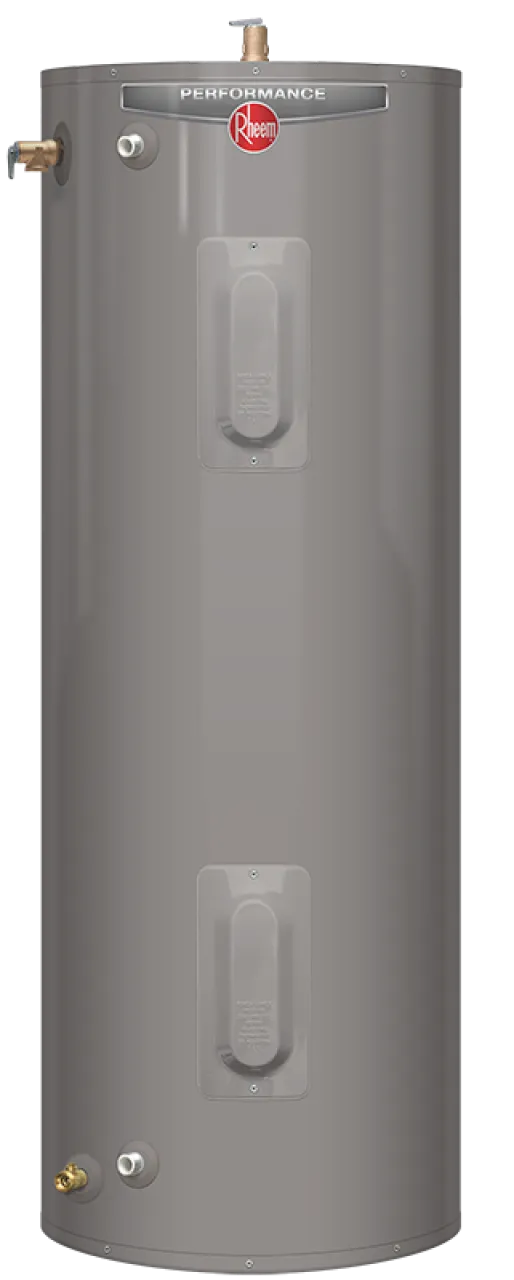

Performance Series: Standard Electric for Manufactured Housing
MODEL XE30T06MH45U1
6-Year limited warranty for tank and parts
1-year full in-home labor warranty
*See written warranty for complete details
1-year full in-home labor warranty
*See written warranty for complete details
- .92 - .93 Uniform Energy Factor (UEF)
- Designed for manufactured housing
- 30 and 40 gallon capacities
- Not available in Canada
Select Capacity
30
Gallons
40
Gallons
SKU XE30T06MH45U1
Model Performance Standard Electric for Manufactured Housing
Tank Capacity 30
Fuel Electric
Depth 21.75"
Single Shower Minutes 14
Number Back To Back Showers 1
Mid Efficiency Yes
PERFORMANCE™ electric water heaters are NAECA and HUD certified for Manufactured Housing and modular construction
Efficiency
Efficiency
- .92 - .93 UEF
- Isolated tank design reduces conductive heat loss
- Dual 4500W copper heating elements
- FHR: Up to 53 gallons, based on model
- Recovery: 21 GPH for 4500 watts at a 90° F rise**
- Premium grade anode rod provides long-lasting tank protection
- High performance and lower operating cost
- Side inlet and outlet connections
- Compliant with H.U.D., ASHRAE 90A-80 and NAECA requirements
- Electric junction box located above heating elements for easy installation
- Over-temperature protector cuts off power in excess temperature situations
- Automatic thermostat keeps water at desired temperature
- Temperature and pressure relief valve included
- Low lead compliant
| PERFORMANCE STANDARD ELECTRIC MODELS |
|||||
| FUEL TYPE | DESCRIPTION | GAL. CAP. | MODEL NUMBER | ENERGY FACTOR |
ENERGY STAR® |
| Electric | Tall |
40 | XE40T06MH45U1 |
0.93 |
-- |
| Electric | Tall |
30 | XE30T06MH45U1 |
0.92 |
-- |
6-Year limited warranty for tank and parts
1-year full in-home labor warranty
*See written warranty for complete details
1-year full in-home labor warranty
*See written warranty for complete details
