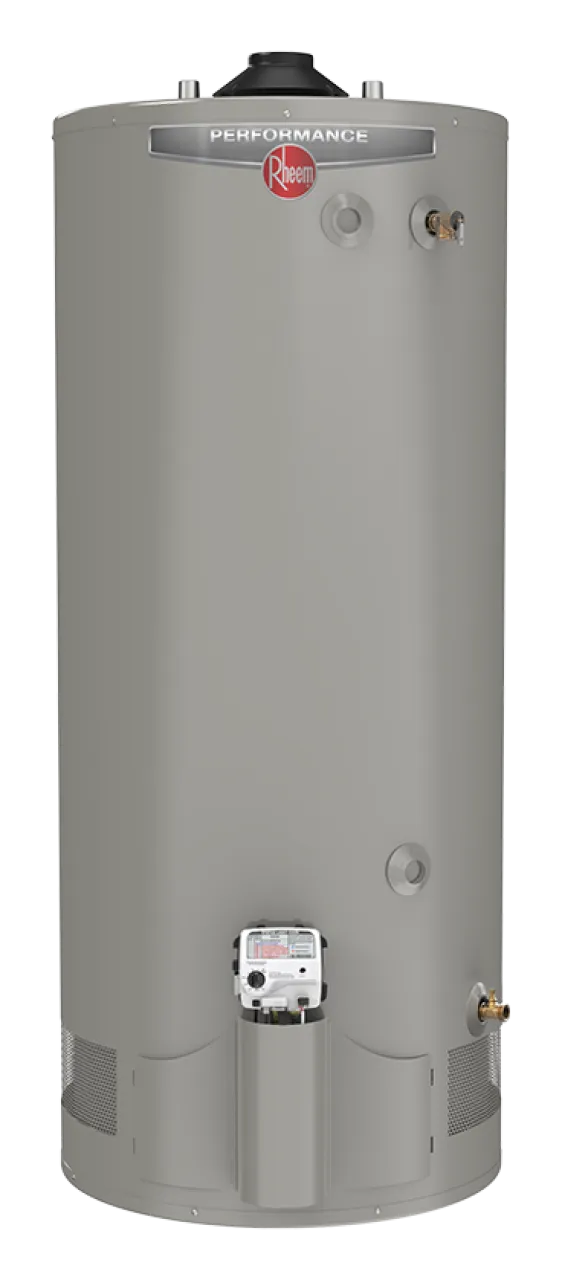

Performance Series: High Demand Ultra Low NOx Atmospheric
MODEL XP75T06ST76U0
Warranty
- 6-year limited warranty for tank and parts, 1-year full in-home labor warranty*
*See written warranty for complete details
- 75 and 98 gallon models
- Cord-free design
- Certified for applications up to 10,000 feet above sea level
- Side water connections enable use in space heating applications
Select Capacity
75
Gallons
98
Gallons
SKU XP75T06ST76U0
Model Performance High Demand Ultra Low NOx Atmospheric
Tank Capacity 75
Fuel Propane Gas
Single Shower Minutes 34
Number Back To Back Showers 3
UEF 0.61
High Efficiency Yes
LowNox Yes
The new and improved line of Rheem Ultra Low NOx water heaters meets the industry's highest environmental standards while providing more safety features and better reliability than ever.
Performance
- Recovery Capacity: 72.8 gallons per hour*
- FHR: 135 gallons for 75-gallon model and 150 gallons for 98-gallon model
Guardian™ System
- Exclusive fuel shut-off device
- Maintenance free – no filter to clean
- Protective control system that disables the heater in the presence of flammable vapor accumulation
Integrated Burner Safety System
- Bi-metal temperature sensor maintains safe burner operation
High Altitude Compliant
- All models are certified for applications up to 10,000 feet above sea level
Plus…
- Integrated self diagnostic system control for easy installation and service
- Eco-friendly burner, ultra low NOx design meets 14 ng/J NOx requirements
- Premium grade anode rod provides long-lasting tank protection
- Enhanced-flow brass drain valve
- Temperature and pressure relief valve included
- Low lead compliant
- Cord-free design
- Side water connections for space heating applications
- Standard replacement parts
Warranty
- 6-Year limited tank and parts warranty**
- With ProtectionPlus®, the 6-year limited tank warranty becomes 10-year
*Recovery Capacity is based upon a 90° F water temperature rise and calculated per ANSI Z21.10.3 standards
**See Warranty Certificate for complete information
Warranty
- 6-year limited warranty for tank and parts, 1-year full in-home labor warranty*
*See written warranty for complete details
