Performance Series: Direct Vent

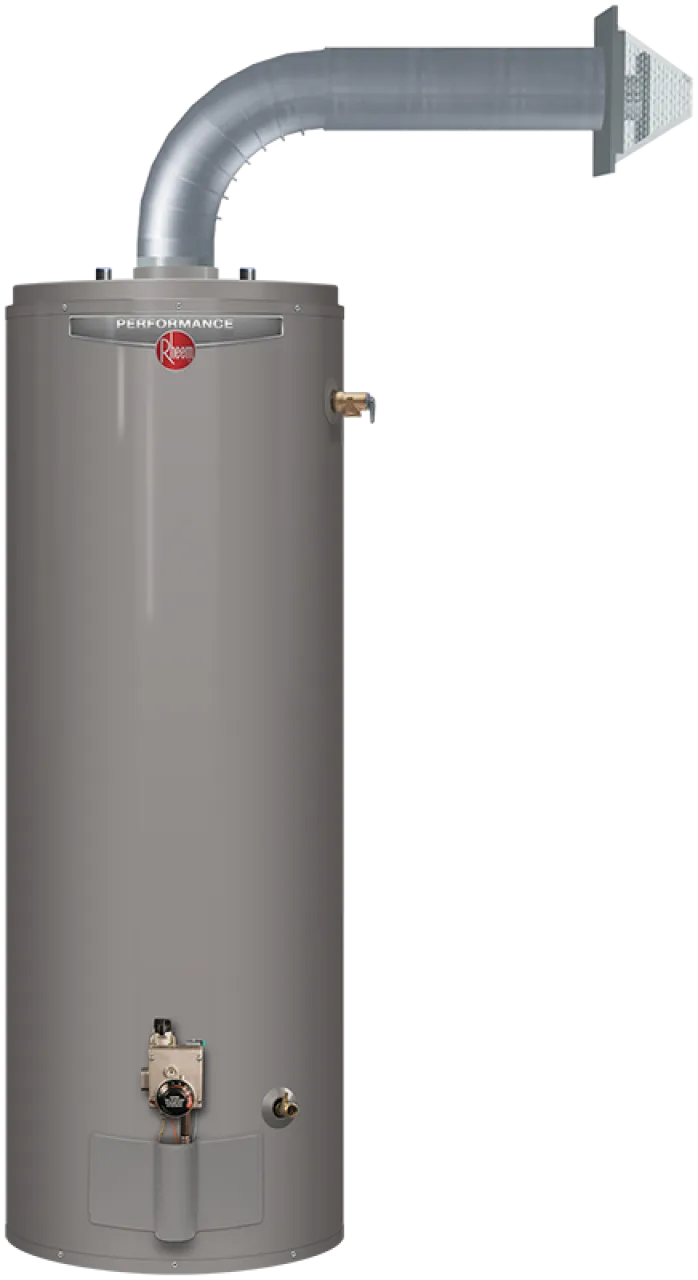

MODEL XG50T06DV36U0 H
6-year limited warranty for tank and parts, 1-year full in-home labor warranty
*See written warranty for complete details
- .63 Uniform Energy Factor (UEF)
- Aluminum vent and cap base to prevent staining of building exterior
- 50 gallon capacity
Select Capacity
40
Gallons
50
Gallons
SKU XG50T06DV36U0 H
Model Performance Direct Vent
Tank Capacity 50
Fuel Natural Gas
Single Shower Minutes 23
Number Back To Back Showers 2
PERFORMANCE® Direct Vent water heaters use outside air for combustion, offer longer venting options and a coaxial vent for easy installation
Efficiency
Efficiency
- .63 UEF
- Well insulated for reduced stand-by heat loss
- FHR: 78 gallons
- Recovery: 36.4 GPH at a 90° F rise
- Adjustable coaxial vent allows flexibility of installation, can swivel 360 degrees and uses outside air for combustion and requires no electrical power
- Aluminum vent and cap base to prevent staining of building exterior
- Longer venting options available, see chart on reverse
- Order Horizontal Vent Kit: #SP20131
- Order Vertical Vent Kit: #SP20132
- Exclusive air/fuel shut-off device
- Maintenance free – no filter to clean
- Disables the heater in the presence of flammable vapor accumulation
- Meets 40 ng/J NOx requirements
- Premium grade anode rod provides long-lasting tank protection
- Temperature and pressure relief valve included
- Low lead compliant
- Exclusive Rheemglas® tank lining resists corrosion and prolongs tank life
- Heat saving flue baffle design
- Gas control and combination thermostat
- Piezo ignition
- High temperature silicone bands reduce venting installation time
- Internal air tube for reduced footprint
- EverKleen® patented system fights sediment build-up
| ERFORMANCE PLATINUM HIGH DEMAND MODELS | |||||
|---|---|---|---|---|---|
| FUEL TYPE | DESCRIPTION | GAL CAP. | MODEL NUMBER | ENERGY FACTOR | ENERGY STAR® |
| Natural Gas | Tall | 50 | XG50T06DV36UO | 0.63 UEF | -- |
6-year limited warranty for tank and parts, 1-year full in-home labor warranty
*See written warranty for complete details
