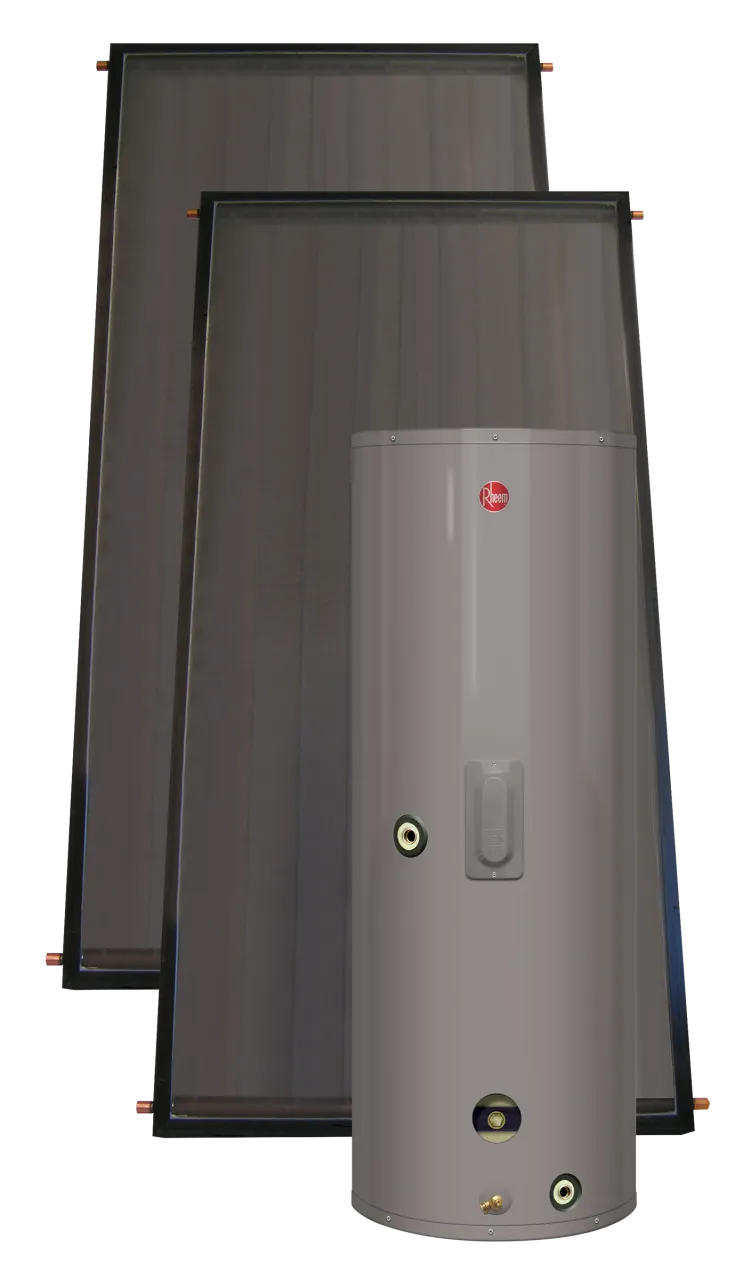

SolPak with Gas Assist Heat Exchange Tank
MODEL RSG75-40BP
Tank - 6 Years
Collector - 10 Years
Pump and Control - 2 Years
Collector - 10 Years
Pump and Control - 2 Years
- A single tank solar solution
- Available in 75 gallon capacity
- 75.1 BTU input per hour
Models
SKU RSG75-40BP
Model SolPak Featuring a Gas Assist Heat Exchange Tank
Fuel Electric
Height 60"
The System – a Single Tank Solar Solution!
- Takes up less space
- Drop in replacement for current gas water heating system
- Fast recovery for high demand situations
- Closed loop glycol design
- Included: HE tank, collectors, controller, multi-speed pump, mixing valve, glycol solution, thermal expansion tank (for glycol loop)
- Sold separately: 18 AGW sensor wire, tilt mount kits (consult factory for mounting options)
- OG-300 Certification by SRCC (Pending)
The Heat Exchanger Tank
- 75 Gallon capacity
- 75.1 BTU input per hour (natural gas)
- Double wall heat exchanger – copper tubing wrap-around design
- Gas backup heating source
- 3/4" Water and collector loop connections
The Collectors
- 3' x 8' and 4' x 10'
- Flat plate design
- Black paint absorber coating
- OG-100 certified by SRCC
| DESCRIPTION | ||||
|---|---|---|---|---|
| GAL CAP. | MODEL NUMBER | SRCC CERTIFIED | ||
| 75 | RSG75-48BP | Pending | ||
| 75 | RSG75-40BP | Pending | ||
Tank - 6 Years
Collector - 10 Years
Pump and Control - 2 Years
Collector - 10 Years
Pump and Control - 2 Years
