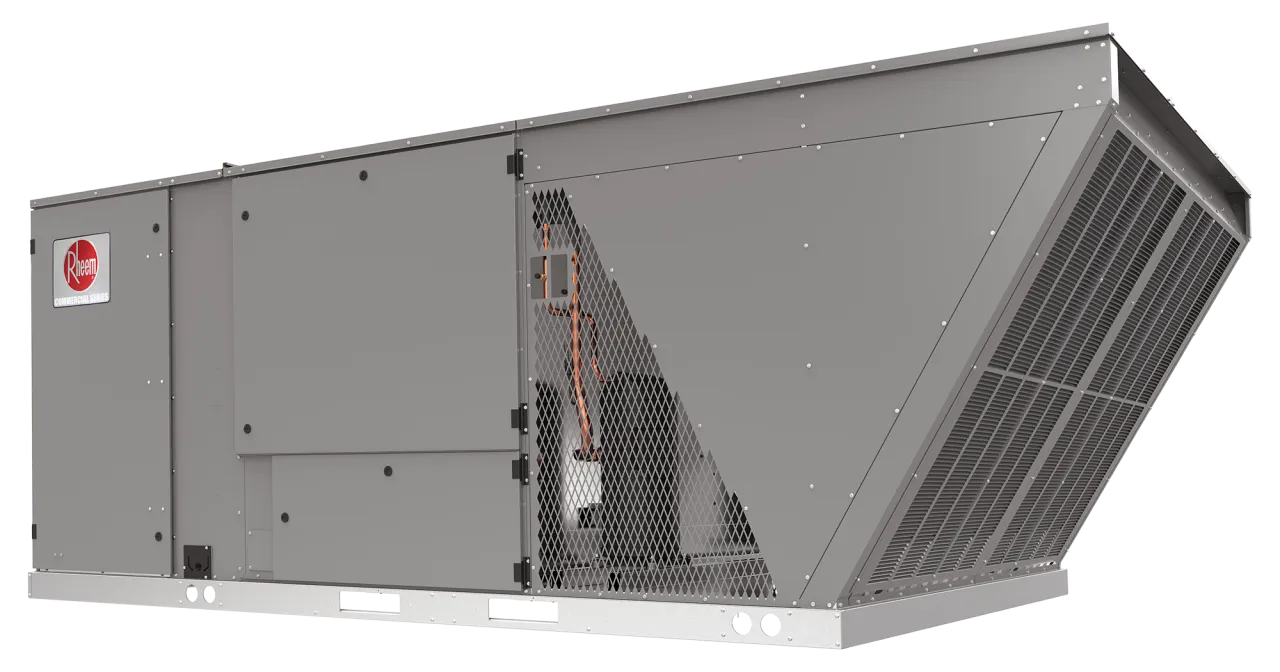

RACHYB Resolute™ Line Classic® Series Packaged A/C (30 Ton)
MODEL RACHYB360AYH
Commercial Applications
Compressor: 5 Years
Parts: 1 Year
- Nominal size: 30 Ton
- Up to 10.5 EER / 14.2 IEER
- Five-stage cooling
- Coil Type: Fin and Tube Evaporator MicroChannel Condenser
- Optional PlusOne® ClearControl™
- Refrigerant Type: R-454B with factory-installed sensor
SKU RACHYB360AYH
Model RACHYB Resolute™ Line Classic® Series Packaged A/C (30 Ton)
Fuel Electric
The Resolute 30 ton unit stands out for its powerful five-stage cooling and standard single- and multi-zone VAV capabilities while also being industry's smallest and lightest option. Impove building occupant comfort through zoning, multi-stage cooling, and optional HumidiDry® hot gas reheat by choosing Resolute 30 ton.
Standout Features:
- Resolute™ 30 ton models are the smallest and lightest available in the industry.
- Hinged access panels, slide-out condensate drain pan, factory-installed economizers, and single-point wiring for quick, easy service and maintenance
- Maximize humidity control without compromising the desired set point with HumidiDry®, delivering energy savings, performance, and comfort
- PlusOne® Diagnostics come standard through CoreCommand™ with easy-to-read and understand fault codes, history, and input/output options to meet building compliance needs
- Optional ClearControl™ includes factory-installed Direct Digital Control (DDC) and sensors for easy connectivity through Modbus®, LonWorks®, or BACnet®
Available power options: 208-230V / 3 phase / 60 Hz • 460V / 3 phase / 60 Hz • 575V / 3 phase / 60 Hz
Limited Warranty (Commercial Applications): Parts – 1 Year • Compressor – 5 Years. Additional extended warranty packages available through ProtectionPlus®.
All units are factory run tested and shipped with R-454B refrigerant charge.
Commercial Applications
Compressor: 5 Years
Parts: 1 Year
