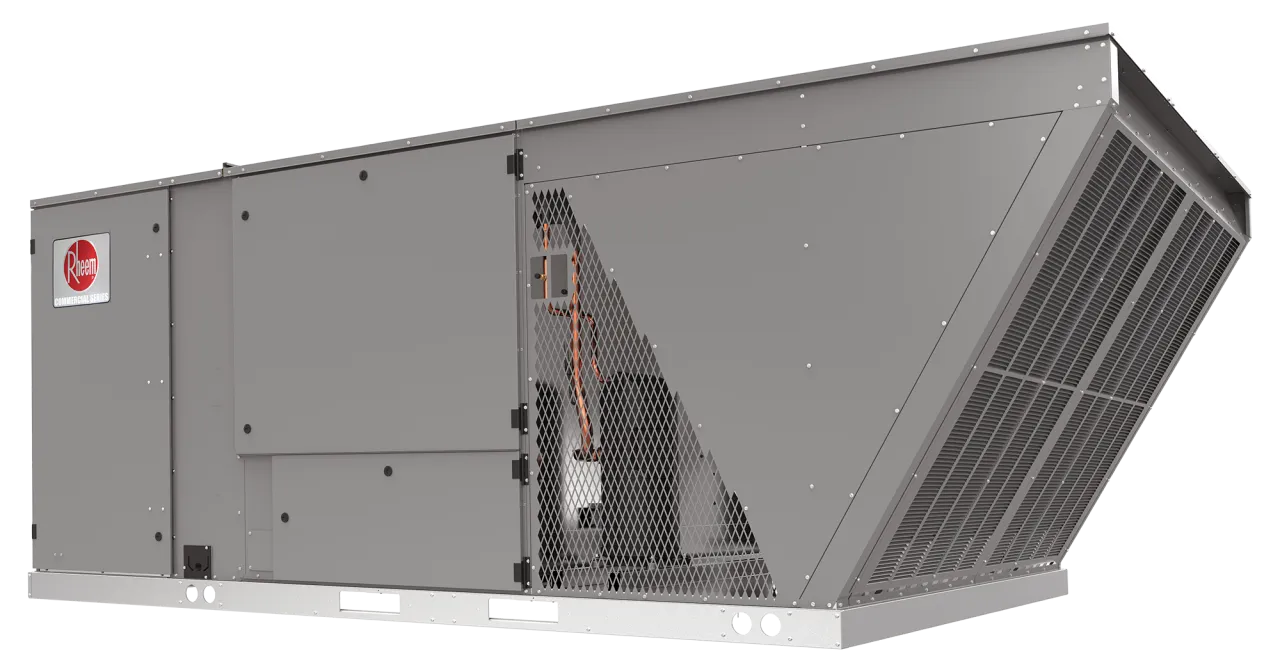

RACH5U Resolute™ Line Classic® Series Packaged A/C
MODEL RACH5U360A
Parts: One (1) Year (Commercial Applications)
Compressor: Five (5) Years (Commercial Applications)
- Nominal size: 30 Ton
- Up to 10.5 EER/14.2 IEER
- Five-stage cooling
- Coil Type: Find and Tube Evaporator MicroChannel Condenser
- Optional PlusOne® ClearControl™
Models
SKU RACH5U360A
Warranty Years 1
Model RACH5U Commercial Resolute™ Line
Tonnage 30
Fuel Electric
Depth 85"
Height 57"
Width 152"
Nominal Capacity in BTUH 340000
Gross Capacity in BTUH 340000
Min Tonnage 360000
Max Tonnage 360000
The Resolute™ 30 ton unit is the industry's only 30-ton VAV with convertible airflow, building on Rheem's commitment to bringing innovative solutions to the market that include installability and serviceability benefits. All Rheem Resolute products meet the 2023 DOE efficiency standards with enhanced efficiencies. Resolute products are offered in a unique Rheem footprint and are a great fit for new construction projects or when replacing an existing Rheem packaged unit.
- Convertible airflow (downflow and horizontal) to enhance application flexibility
- PlusOne® ServiceSmart Package including Qwik-Slide Removable Blower assembly, Slide-out drain pan with condensate overflow sensor, standard hinged access panels, and standard single-point wiring
- Optional ClearControl™ for easy communication via BACnet, LonWorks, or Modbus
- Factory charged with R-410A refrigerant
- Wired and run tested
- 1/4 turn fasteners on filter access door for quick access
- Cooling operation up to 125°F ambient
- Manufactured in Fort Smith, Arkansas
Parts: One (1) Year (Commercial Applications)
Compressor: Five (5) Years (Commercial Applications)
