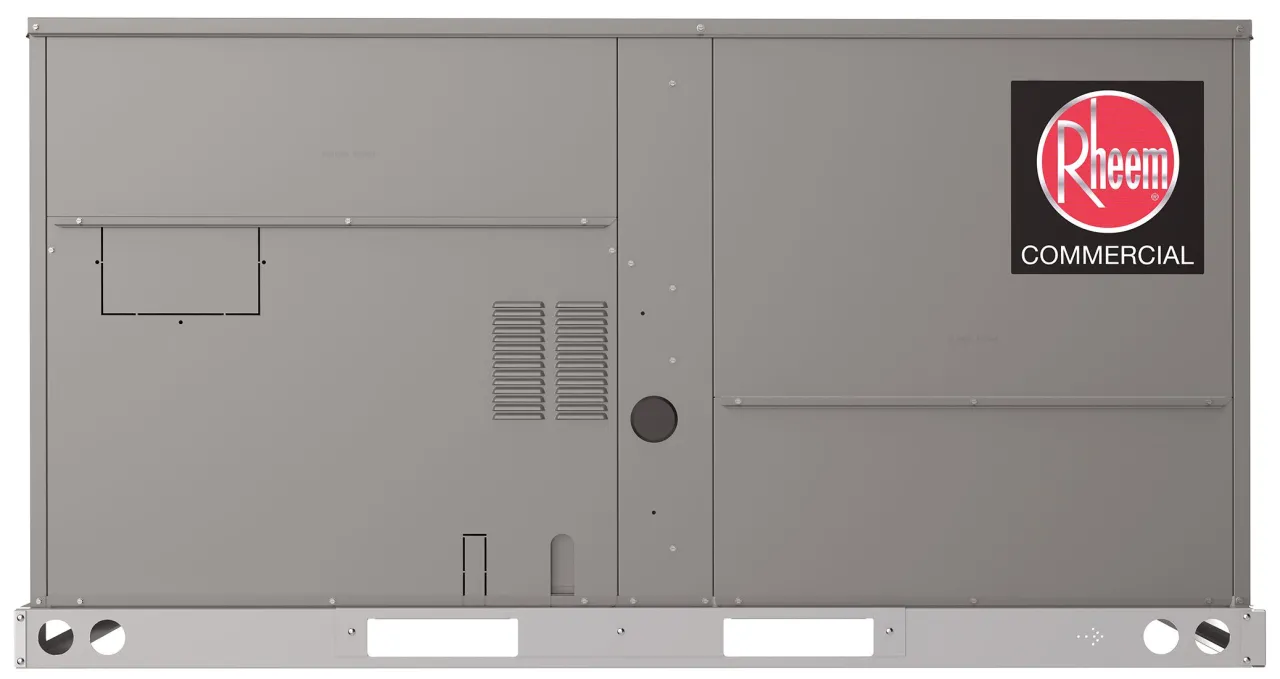

RACCZR/ZT Renaissance™ Line Packaged A/C
MODEL RACCZT072ACT000AAAA0
Parts: 5 Years
Compressor: 5 Years
- Nominal sizes: 3-6 Tons
- 3-5 Tons: Up to 16.2 SEER2 / 12 EER2
- 6 Tons: Up to 14.8 IEER / 11.2 EER
- One-stage cooling (RACCZR) or two-stage cooling (RACCZT)
- Coil Type: Full MicroChannel
- Optional PlusOne® ClearControl™/Optional PlusOne® HumidiDry®
Select Tonnage
3
Tons
4
Tons
5
Tons
6
Tons
SKU RACCZT072ACT000AAAA0
Warranty Years 1
Model RACCZR/ZT Renaissance™ Line Packaged A/C
Tonnage 6 Tons
Fuel Electric
Depth 79.25"
Height 41.38"
Width 46.75"
SEER 17
Nominal Capacity in BTU/h 70000 BTU/h
Gross Capacity in BTU/h 70000 BTU/h
Min Tonnage 3 Tons
Max Tonnage 6 Tons
Engineered with installability and serviceability in mind, Renaissance makes easier, drop-in replacement possible in most cases without a curb adapter. Once installed, building owners and contractors will enjoy the serviceability advantages Renaissance offers with out ServiceSmart Package that includes a Qwik-Clean Drain Pan, the Qwik-Slide Blower Assembly, and PlusOne® Diagnostics with Dual 7-Segment LED Display.
RACCZR/ZT models in 3-5 tons offer up to 16.2 SEER2/17 SEER and 12 EER2/12.5 EER. RACCZT models in 6 tons offer up to 14.8 IEER and 11.2 EER. With 2-stage cooling (RACCZT models only) and optional HumidiDry®, these Renaissance models include many innovative features that enhance overall and part-load performance to meet or exceed DOE 2023 requirements.Parts: 5 Years
Compressor: 5 Years
