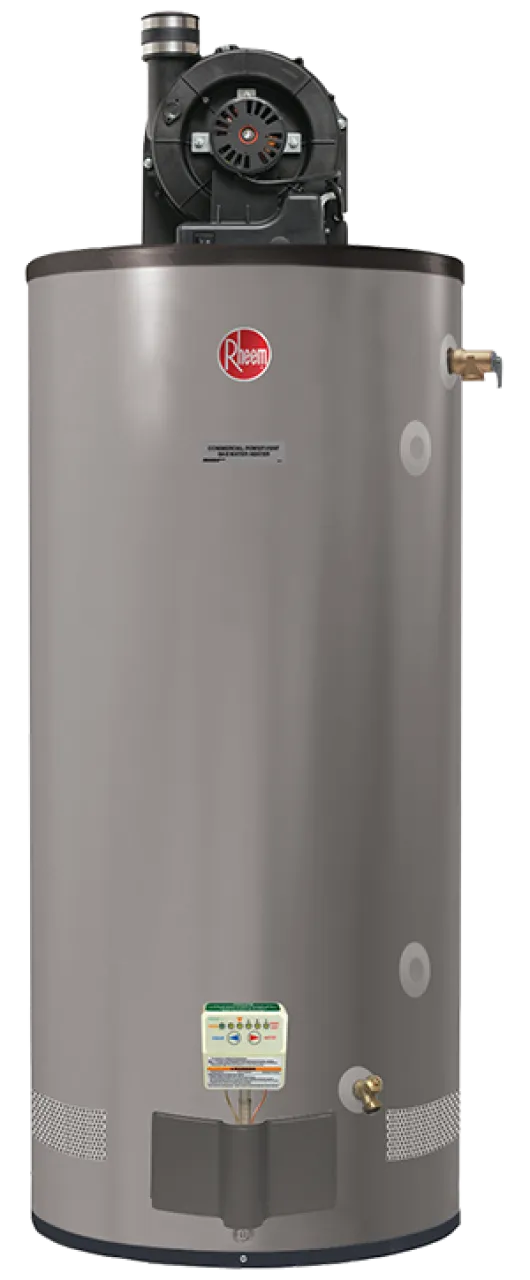

PowerVent

Model # 42V40SF

Commercial Gas Water Heaters

PowerVent

Model # 42V40SF

Limited warranty may be conditional and require registration. Please refer to product warranty certificate for full details.

75,100 BTU/Hr.
Uses 3" or 4" schedule 40 PVC, CPVC or ABS pipe
Vents up to 95 feet
75 gallon capacity

Overview

Long life tank design – proprietary steel formulation with a unique coat of high temperature porcelain enamel to maximize corrosion resistance resulting in a superior tank design.

Guardian System™

Air / fuel shut-off system offers double protection
Maintenance free – no filter to clean

Flammable Vapor
Detection Sensor

Protective control system that disables the heater in the presence of flammable vapor accumulation

Flexible Venting Options

Long venting lengths up to 95 feet
PVC, ABS, or CPVC vent pipe options
Vertical or horizontal termination

New Quiet Blower

Less noise than ever before

Self-Diagnostic System

Integrated self-diagnostic system control takes the guesswork away

Environmentally Friendly Burner

Low NOx design for low nitrous oxide emissions

High Altitude Compliant

Certified for applications up to 7,700 feet above sea level

Longer Life

Patented magnesium anode rod design incorporates a special resistor that protects the tank from corrosion
Provides longer tank life than using standard magnesium anode rods

Additional Features

Durable silicon nitride ignitor (HSI)
Standard 110 volt electrical connection
Exceeds National Appliance Energy Conservation Act (NAECA) and ASHRAE requirements
Durable brass drain valve

Temperature and pressure relief valve – CSA/ASME rated and factory installed
Maximum Temperature Setting – 160°F
