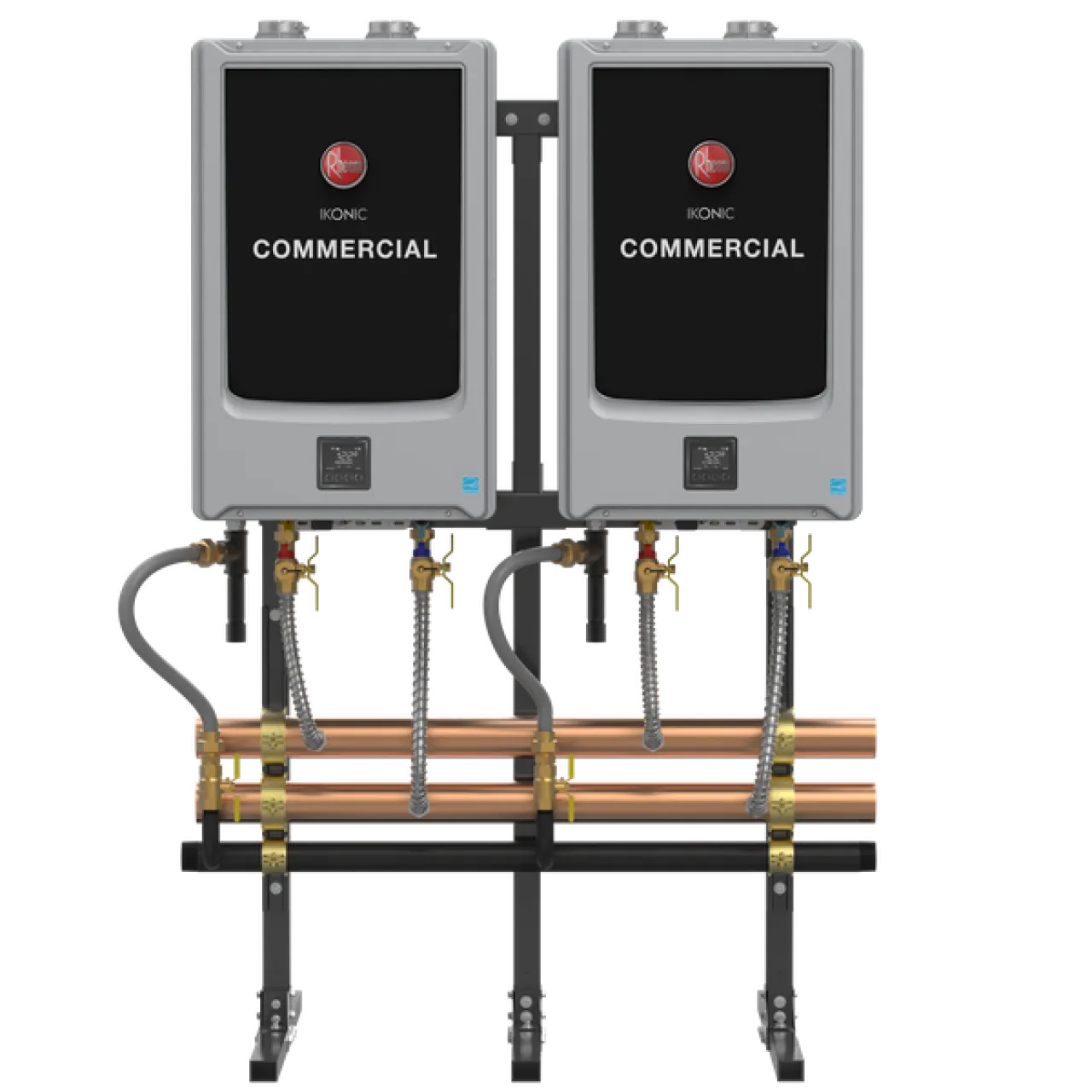

IKONIC Commercial Modular Rack System
MODEL AP24551
Warranty
- 8-year Heat Exchanger Warranty
- Vent up to 12 units together to save space and reduce wall penetrations.
- Connect up to 8 tankless water heaters with an optional Modular Rack Manifold Kit.
- Pre-designed solution with all necessary water and gas piping for side-by-side or back-to-back setups.
- Support any number of units in various configurations.
- Starter and extension kits simplify planning.
- 8-year Heat Exchanger Warranty.
Models
SKU AP24551
Model IKONIC Commercial Modular Rack System
Fuel Natural Gas,Electric
Rheem® Tankless Rack Systems are ideal for commercial projects and applications. The newly expanded commercial tankless line delivers maximum efficiency, advanced features, and the versatility that every business needs.
Rheem offers three different rack systems to suit various installation needs: free-standing rack systems, wall-mount systems, and modular systems. These options provide flexibility and scalability, allowing businesses to choose the best configuration for their specific requirements.
Maneuverability
- Fits, fully assembled, through standard 32-inch doorways and on elevators.
Flexibility
- Available in both wall-mount and free-standing designs for indoor and outdoor installations.
- Includes preassembled gas and water manifolds to save time and money on installation cost.
Versatility
- Suitable for a wide range of commercial settings such as hotels, restaurants, hospitals, and multi-family residences.
- RTRS options can be tailored to meet specific hot water needs and can be installed both indoors and outdoors, providing flexibility to suit various operational requirements.
Durable Construction
- The racks are constructed of powder-coated galvanized steel to withstand the most demanding commercial environments and provide a secure mounting surface.
Connectivity
- Built-in Wi-Fi with EcoNet® allows for easy temperature and settings adjustments, plus the ability to track energy usage, get alerts, notifications and error code settings all from your phone.
Warranty
- 8-year Heat Exchanger Warranty
More Commercial Rheem Products
Find additional documentation by viewing these related products.
Natural Gas
Propane Gas
IKONIC Commercial Condensing Tankless11.2-11.2 GPM
- Up to 98% thermal efficiency
- One unit supports natural gas and liquid propane with a fuel conversion kit. Transitions between indoor and outdoor use with an optional kit
- Manifold capable up to 32 units
- PVC/PP common venting up to 12 units
- 8 Year Heat Exchanger Warranty
Natural Gas
Propane Gas
IKONIC Commercial Tankless Free Standing Rack System- Prebuilt and factory configured rack systems ready to install.
- 11,000 BTU/h to 1,199,400 BTU/h per system
- 2-6 Tankless units per system
- Manifold capable up to 32 units
- PVC/PP common venting up to 12 units
- 8 Year Heat Exchanger Warranty
Propane Gas
Natural Gas
IKONIC Commercial Tankless Wall Hung System- Prebuilt and factory configured rack systems ready to install.
- 11,000 BTU/h to 599,700 BTU/h per system
- 2-3 Tankless units per system
- Manifold capable up to 32 units
- PVC/PP common venting up to 12 units
- 8 Year Heat Exchanger Warranty
