The innovative Rheem® Hybrid Electric Heat Pump Water Heater draws heat from the surrounding air to heat water–delivering unmatched savings and efficiency. Rheem’s heat pump technology provides 4X the efficiency and saves up to $575 per year in energy costs.
VIDEO
The Energy Saving Performance Platinum Hybrid Electric Heat Pump Water Heater
Enjoy efficient hot water, sustainable operation and energy savings. Featuring heat pump technology which heats water up to 4x more efficient than your old traditional electric tank type water heater. Packed with features, the Performance Platinum Hybrid Electric Heat Pump Water Heater has both top and side water connections, duct ready exhaust and air intake and two electric elements to ensure you have the hot water that you need.
Save Money and Energy
- Universal top and side water connections
- Duct-ready design
- Leak Guard™ auto shut-off valve available
- Same Diameter as a standard electric water heater
- Great option for tight spaces, like closets
1Based on comparison of a 50-gallon Rheem Hybrid Electric Heat Pump and a standard electric tank of like capacity with minimum efficiency.

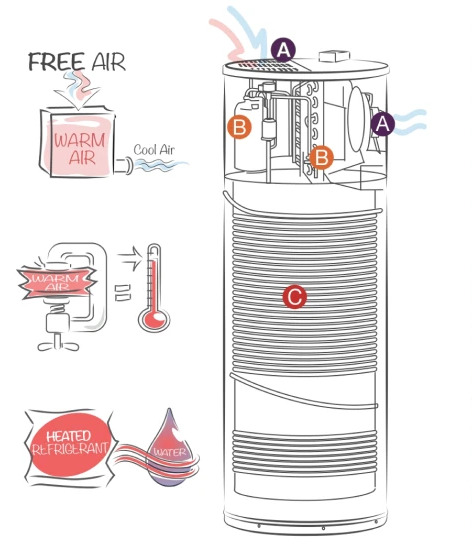

How a Hybrid Heat Pump Water Heater Works
A. Collected
Warm air is collected and cool air is expelled
- Fan pulls air through the upper intake port
- Air passes through a filter
- Eco-friendly refrigerant absorbs heat
- Cool air exhausts through the side outlet
B. Compressed
Air is compressed which raises its temperature
- A compressor pumps heated refrigerant to the condenser tubing
C. Conducted
Heat is conducted to the tank, warming the water
- Heat is transferred to the water in the tank via condenser tubing
US Ground Water Temperature Zone Map
Regional Considerations
When sizing a water heater, regional considerations-particularly incoming water temperature and a room's air temperature-are crucial for hybrid heat pump water heaters. Colder regions require larger water heater sizes to compensate for lower incoming water and cooler room air temperatures.
- Select the geographic zone where you live.
- Determine the number of back-to-back showers required for your household.
- Select the gallon size of your Hybrid Electric Heat Pump Water Heater from the table below, matching your zone with number of back-to-back showers required for your household.
Number of Showers per Gallon Size
The 'Number of Showers' calculation is based on an 8-minute shower using a shower head with a 2-gallon per minute (GPM) flow rate.
|
GALLON CAPACITY |
ZONE 1 37°F |
ZONE 2 42°F |
ZONE 3 47°F |
ZONE 4 52°F |
ZONE 5 57°F |
ZONE 6 62°F |
ZONE 7 67°F |
ZONE 8 72°F |
ZONE 9 77°F |
|---|---|---|---|---|---|---|---|---|---|
| 30 AMP MODELS | |||||||||
| 40 | 3 | 3 | 4 | 4 | 4 | 4 | 5 | 5 | 6 |
| 50 | 4 | 4 | 4 | 4 | 5 | 5 | 5 | 6 | 7 |
| 65 | 4 | 5 | 5 | 5 | 5 | 6 | 6 | 7 | 8 |
| 80 | 5 | 5 | 5 | 5 | 6 | 6 | 7 | 7 | 8 |
| 15 AMP MODELS | |||||||||
| 40 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 |
| 50 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
| 65 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 5 |
| 80 | 4 | 4 | 4 | 4 | 4 | 5 | 5 | 5 | 6 |
Sizing results are representative of peak performance for each geographical region. Performance may vary by season.
Complete Hot Water Management
Increase energy savings and improve hot water production with customized scheduling and usage monitoring
Insights
Energy Usage Monitoring
Complete Hot Water Management
Increase energy savings and improve hot water production with customized scheduling and usage monitoring
Convenience
Hot Water Availability
Complete Hot Water Management
Increase energy savings and improve hot water production with customized scheduling and usage monitoring
Customization
Scheduled Heating Modes
