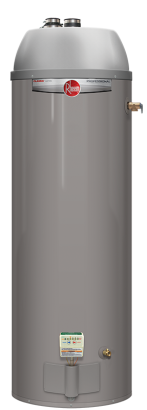

Professional Classic Series: Power Direct Vent
United States
Tank - 6 Years limited
Parts - 6 Years limited
Canada
Tank - 6 Years limited
Parts - 6 Years limited
With ProtectionPlus™ the 6-year limited tank warranty becomes 10-year ProtectionPlus – order part number SP20904 (6 pack only)
With ProtectionPlus™ the 6-year limited tank warranty becomes 8-year ProtectionPlus – order part number SP20081 (6 pack only)
- .63 - .69 UEF
- Induced draft that is FVIR compliant
- 40 and 50 gallon capacities
- Integrated self-diagnostic system control, thermostat and gas valve
- .63 - .69 UEF
- FHR: Up to 82 gallons for natural and LP gas
- Recovery: 38.4 to 40.4 GPH at a 90 degree rise depending on model
- Electronic gas control for improved monitoring and service
- Eco-friendly burner, low NOx design
- Two pipe system: one pipe pulls in outside air for combustion and the other exhausts combustion gases
- 120 VAC powered blower
- New whisper quiet blower
- Protective control system that disables the heater in the presence of flammable vapor accumulation
- Long venting lengths up to 100 feet
- PVC, ABS, or CPVC vent pipe options
- Vertical or horizontal termination
- Concentric vent kit available
- Rheem exclusive R-Tech (resistored) anode rod provides long-lasting tank protection
- Models are certified for applications up to 10,200 feet above sea level
- Enhanced-flow brass drain valve
- Temperature and pressure relief valve included
- Low lead compliant
- Durable silicon nitride igniter (HSI)
- EverKleen™ patented system fights sediment build-up
- Standard replacement parts
United States
Tank - 6 Years limited
Parts - 6 Years limited
Canada
Tank - 6 Years limited
Parts - 6 Years limited
With ProtectionPlus™ the 6-year limited tank warranty becomes 10-year ProtectionPlus – order part number SP20904 (6 pack only)
With ProtectionPlus™ the 6-year limited tank warranty becomes 8-year ProtectionPlus – order part number SP20081 (6 pack only)
