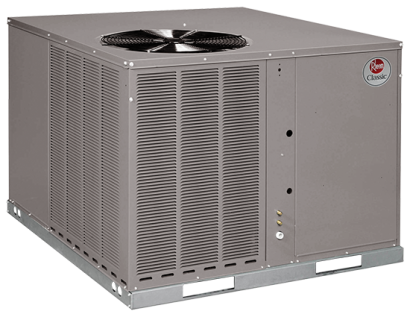

RHPA/XZR Endeavor Line Classic Series iR Packaged Heat Pump

Model # RHPAZR024AJT101NA

RHPA/XZR Endeavor Line Classic Series Packaged Heat Pump

RHPA/XZR Endeavor® Line Classic® Series iR Packaged Heat Pump

RHPA/XZR Endeavor Line Classic Series iR Packaged Heat Pump

Model # RHPAZR024AJT101NA

Limited warranty may be conditional and require registration. Please refer to product warranty certificate for full details.

Tonnage 1.98333

SEER Up to 0

Warranty 0 Yrs

Cooling Efficiency: 13.4 SEER2
Nominal Sizes: 2 to 5 Ton
Cooling Capacities: 22.8 kBTU to 56 kBTU

Overview

Scroll Compressor: For maximum efficiency and quiet operation
Louvered Condenser Compartment: Protects the coil against yard hazards
One-piece Top with Drip Flange: Helps to keep water out of the unit
Supply and Return Air Openings: Feature a one-inch tall flange to prevent water migration into the ductwork
Access Panels: Easily removable and provides access to necessary components for serviceability
Side and Down Discharge Options: Available on all models (Shipped horizontal flow standard)
Easily Accessible Blower Section: Features a slide-out blower
Conveniently Located Refrigerant Connections: For easy service diagnostics. Low pressure/loss of charge protection is standard on all models
Evaporator Coils: MicroChannel evaporator coil delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils
Condenser Coils: “A” cabinet condenser coil features enhanced fins for better heat transfer and rifled copper tubing for greater efficiency. “X” cabinet condenser coil uses the latest microchannel technology for the most effective method of heat transfer
Supplemental Electric Heat Strips: Up to 15 kW are available (field or factory installed) for periods of extreme cold temperatures. Single point wiring simplifies installation
Easily Accessible Control Box
Thermal Expansion Valve: Is standard on all models and provides superior superheat control, reliability, and energy efficiency at all operating conditions
Filter Drier: Is standard on all models
Rugged baserail: Included for improved installation and handling
Reversing Valve Directs Flow of Refrigerant: And reverses the refrigerant flow when heating is required
